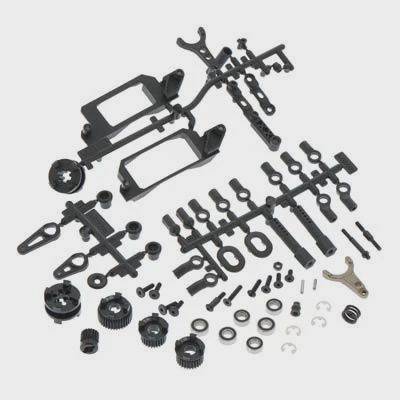

Axial Yeti 1/10 2 Speed Hi/Lo Transmission Components (AX31181)
FEATURES
- First gear is a 2:1 reduction intended for slow crawls
- High gear option (26T) increases top speed with a 0.93:1 ratio
- Heat treated hardened steel machined gears
- 2-speed gear slider with four tooth engagement design for rapid gear shifts on the fly
- Servo saver with one long and one short servo horn and one each, 23, 24 and 25 tooth splines for different brands of servos
INCLUDES
- 18T, 28T, 26T, 36T and Slider Gear
- Full set of Transmission Cartridge Bearings
- Servo Saver System, w/two Servo Horns, and three Spline Adapters
- Micro and Standard Servo Mounting Brackets
- All Required Hardware
- Instruction Sheet
REQUIREMENTS
- 3-channel radio
- Servo with at least 80oz/in of torque
SPECIFICATIONS
- Lo Gear Ratio: 2:1
- Hi Gear Ratio: 1.08:1
- Hi Gear Option ratio: 0.93:1
