CSE Mamba Micro X2, 16.8V, Sen ESC W1406-2280(CSE10017102)

Horizon Hobby

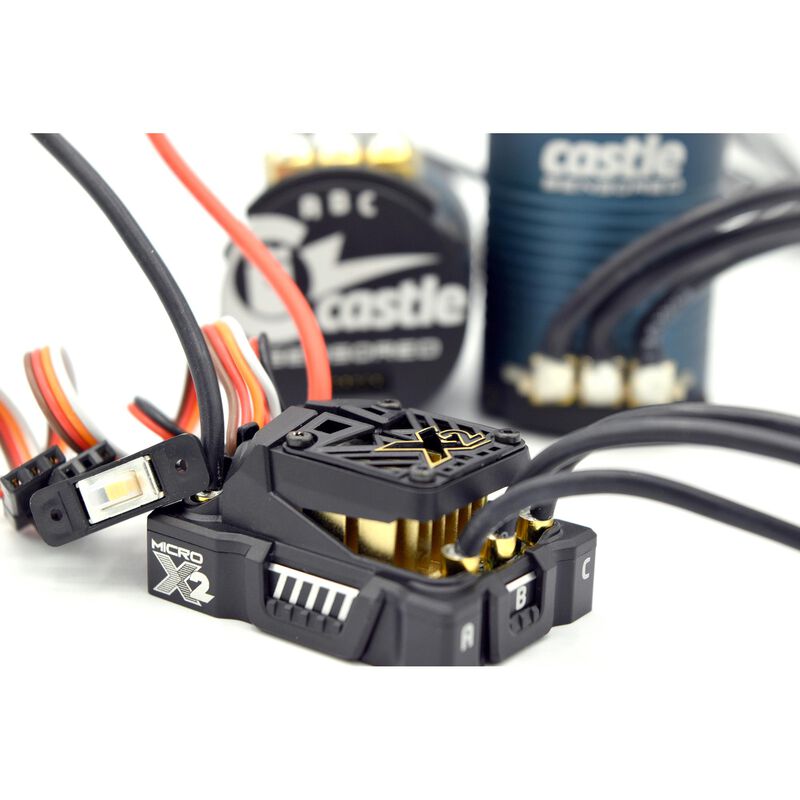

CSE Mamba Micro X2, 16.8V, Sen ESC W1406-2280(CSE10017102)

$ 169.99

This ESC and Motor Combo is ideal for the weight conscious builder or where space is limited, it is perfect for 1:10 scale low speed rock crawlers/trail runners on 2S or 3S weighing less than 8lbs; can also be used in vehicles up to 4lbs for extended hill climbing and rock racing.

In The Box
  • (1) Mamba Micro X2 ESC with 4 mm Connectors
  • (1) 1406-2280Kv Sensored Motor
  • (1) Sensor Harness
  • (1) Coupon for free Castle Link USB adapter
  • (1) Driver's Ed and Quick Start Guide
  • (1) Castle Decals

Overview

The Mamba Micro X2 is a refresh of Castle's popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. Castle also added DATA LOGGING and CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC, waterproof* and has SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with Castle's Slate Crawler motors.

Features

  • Input Voltage range 2S-4S
  • Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
  • Waterproof design.
  • Sensored Motor capable (with optional sensor harness)
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
  • Convenient transmitter programming for six common adjustable settings.
  • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
  • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.
  • Designed and manufactured in Olathe, Kansas and is backed by a 1-year warranty.

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
